Basic Electrical Laboratory
The basic electrical laboratory is well equipped with experimental-set-ups for gaining practical skills in fundamentals of electrical and electronics system
Laboratory Facilities
| S.No | Name of the Equipment’s | Specifications |
|---|---|---|

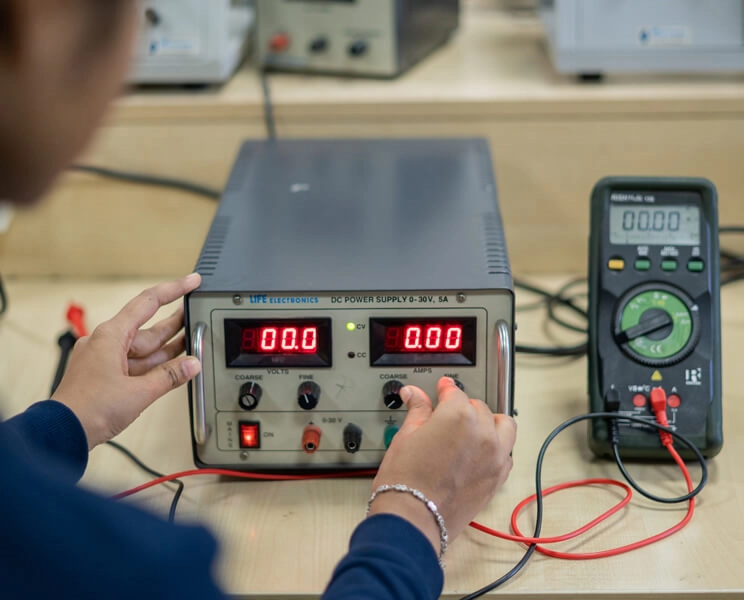

| 1 | DC Regulated Power Supplies | 0-30V/2A, 2 Channel |
| 2 | DC Shunt Motor Coupled With Shunt Generator | 3.5kw,230V,1500rpm With Loading Arrangement |
| 3 | DC Series Motor | 3.5kw,230V,1500rpm With Loading Arrangement |
| 4 | DC Compound Motor | 3.5kw,230V,1500rpm With Loading Arrangement |
| 5 | Star & Delta Connected Load | 5A, 3Phase, resistive load |
| 6 | Single Phase Induction Motor | (3.5kw,230V,1500rpm With Loading Arrangement) |
| 8 | Digital Multimeter | |
| 9 | Single Phase Variac, | 0-250V, 15A |
| 10 | Single Phase Transformer set, | 1KVA, 230V/115V |
| 11 | AC Ammeter | (0-20mA) |
| 12 | AC Ammeter (0-5A) | (1x,10X Probes) |
| 13 | AC Voltmeter (0-600V) | (Soldering gun, Flux, Lead, Bit cleaning Sponge, Stand) |
| 14 | Wattmeter (0-5/10A,300V UPF) | |
| 15 | Wattmeter (0-1A,300V LPF) | (Single stand, Multi stand) |
| 16 | Lamp Load (10A,230V) | (5A-10A) |
| 17 | Tachometer (10000RPM) | (Screwdriver Set, Cut plier, Scissors, Tweezers) |
| 18 | Energy meter | 240V 5A |
| 19 | Resistors | (1k,2.2k,4.7k,100, 6.8? of 0.25,0.5,1W) |
| 20 | Function generator | 3MHZ |
| 21 | AC Ammeter | 2A/5A |
| 22 | Analog Wattmeter UPF | |
| 23 | Analog Wattmeter LPF | |
| 24 | Multistand connecting wire | |
| 25 | Digital Stop watch |
